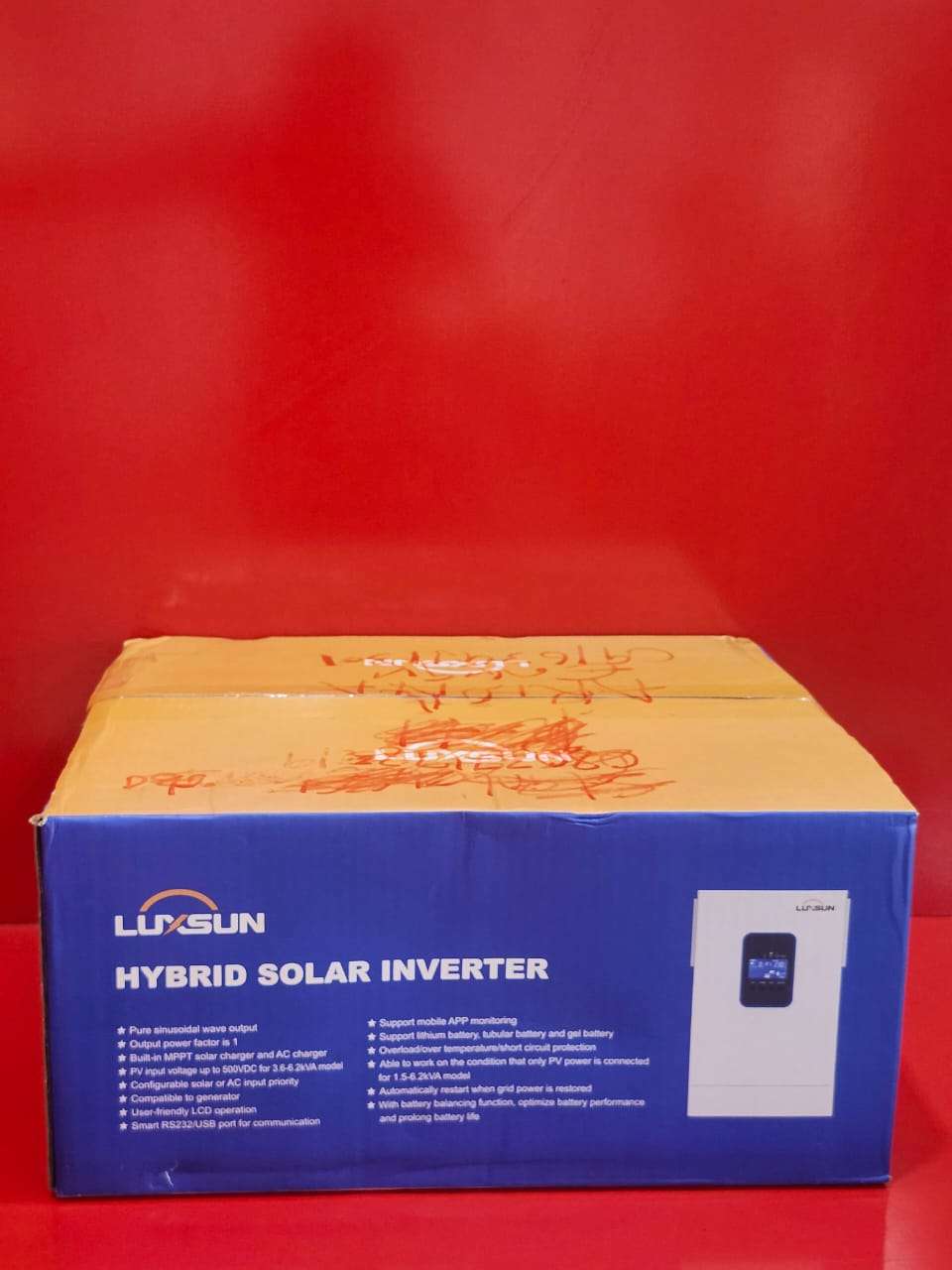

The LUXSUN Hybrid Solar Inverter is a high-efficiency pure sine wave inverter designed to provide reliable, uninterrupted power for residential and commercial applications. Combining an inverter, MPPT solar charge controller, and AC battery charger in one intelligent unit, it maximizes solar energy utilization while ensuring stable power output for sensitive electrical and electronic equipment.
With advanced MPPT technology, the inverter efficiently harvests solar energy, supports multiple battery types including lithium, tubular, and gel batteries, and offers intelligent battery management to extend battery life. It also features built-in protection against overload, short circuit, over-temperature, and overcharging, ensuring safe and dependable operation.
The LUXSUN Hybrid Solar Inverter supports mobile app monitoring, allowing users to monitor system performance remotely. Its LCD display provides real-time information on battery status, solar charging, load consumption, and system faults for easy operation and maintenance.
Key Features
Pure sine wave output for stable and clean electricity.
Built-in MPPT solar charge controller.
Integrated AC battery charger.
Supports lithium, tubular, and gel batteries.
Mobile App monitoring capability.
Intelligent battery balancing function.
LCD display for system monitoring.
Overload, short-circuit, over-temperature, and overcharge protection.
Compatible with generator input.
Automatic restart when utility power is restored.
RS232/USB communication interface.
Suitable for homes, offices, shops, schools, and small businesses.
Applications
Residential solar power systems
Offices and commercial buildings
Retail shops
Schools
Hospitals
Backup power systems
Small industrial applications
Step 1: Install the Inverter
Mount the inverter securely on a solid wall in a well-ventilated area away from direct sunlight, moisture, and excessive heat.
Step 2: Connect the Battery
Connect the recommended battery bank while ensuring correct polarity. Tighten all battery terminals securely.
Step 3: Connect Solar Panels
Wire the solar panels according to the inverter’s specified PV voltage range and ensure the maximum PV voltage is not exceeded.
Step 4: Connect Utility or Generator
Connect the AC input from the national grid or generator to provide backup charging when solar energy is unavailable.
Step 5: Connect Electrical Loads
Connect household or office appliances to the inverter’s AC output terminals.
Step 6: Power On
Turn on the battery first, then switch on the inverter. The LCD screen will display the operating status.
Step 7: Configure Settings
Using the LCD menu, set:
Battery type
Charging current
Output priority
Charging priority
Input voltage range
Output frequency
Step 8: Monitor Performance
Regularly monitor:
Battery level
Solar charging status
Load percentage
Output voltage
Fault and warning messages
Safety Tips
Installation should be carried out by a qualified technician.
Use the correct cable size, breakers, and fuses.
Ensure proper grounding of the system.
Do not exceed the inverter’s rated load capacity.
Disconnect AC, PV, and battery power before servicing.
Keep ventilation openings free from obstruction to prevent overheating.
