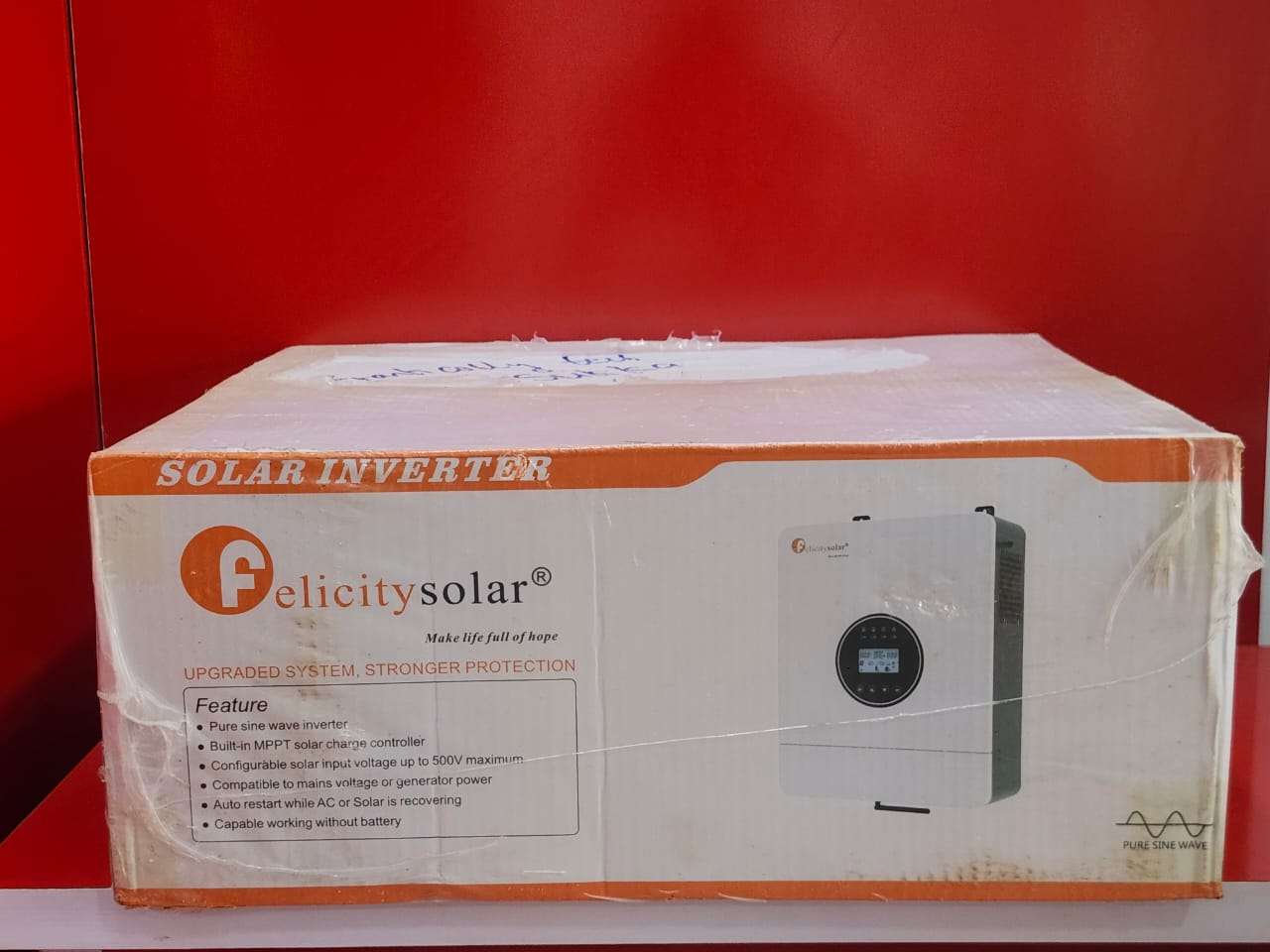

The Felicity Solar 6000VA Hybrid Inverter (IVEM6048) is a high-performance pure sine wave inverter designed to provide reliable and efficient power for homes, offices, and small businesses. It combines a solar inverter, intelligent battery charger, and MPPT solar charge controller into one compact unit, allowing seamless integration of solar panels, batteries, and the utility grid. The inverter delivers stable AC output, making it suitable for sensitive electronic devices while maximizing solar energy utilization.
Key Features

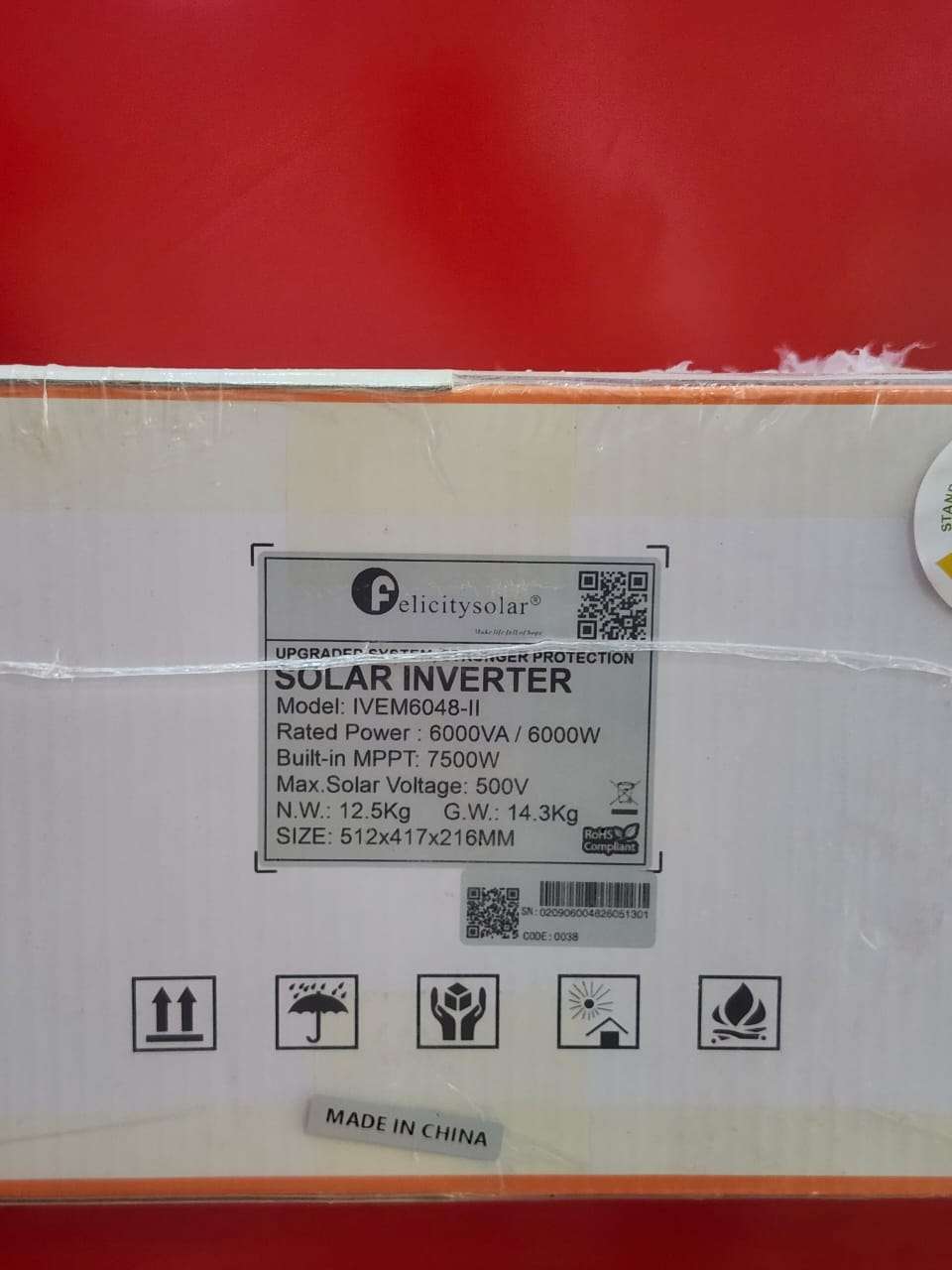

Rated Power: 6000VA / 6000W
Battery Voltage: 48V DC
Output Waveform: Pure Sine Wave
Built-in MPPT Solar Charge Controller: Up to 120A
Maximum PV Input Power: Up to 7500W
Maximum PV Open Circuit Voltage: 500V
PV Operating Voltage Range: 90V–450V
AC Input Voltage Range: 90–280V
LCD Display for real-time monitoring and system configuration
Supports Lithium, AGM, and GEL batteries
Parallel operation of up to 12 units
Multiple charging and operating modes
Comprehensive protection against overload, short circuit, over-temperature, overcharge, and battery deep discharge.
Applications
Residential solar power systems
Offices and commercial buildings
Schools and hospitals
Shops and supermarkets
Farms and rural electrification
Backup power systems
How to Use
Step 1: Install the Inverter
Mount the inverter vertically on a solid wall with adequate ventilation.
Keep it away from direct sunlight, moisture, and flammable materials.
Step 2: Connect the Battery
Connect a 48V battery bank (preferably lithium for best performance).
Ensure the battery polarity is correct before switching on.
Step 3: Connect Solar Panels
Wire the solar panels according to the recommended PV voltage range (90–450V).
Ensure the total PV voltage does not exceed 500V Open Circuit Voltage (Voc).
Step 4: Connect AC Input
Connect the utility or generator supply to the AC input terminals.
Step 5: Connect AC Output
Connect household or office loads to the AC output terminals.
Step 6: Power On
Switch on the battery first.
Turn on the inverter using the power button.
The LCD screen will display system information.
Step 7: Configure Settings
Using the LCD menu, configure:
Battery type (Lithium, AGM, or GEL)
Charging current
Output source priority
Charging source priority
Input voltage range
Output frequency (50Hz or 60Hz)
Step 8: Monitor the System
The LCD displays:
Battery voltage
Solar charging status
PV voltage
Output power
Load percentage
Fault and warning messages
Safety Tips
Installation should be performed by a qualified technician.
Use correctly sized cables and protective breakers.
Ensure proper grounding of the inverter.
Never exceed the inverter’s rated power or PV voltage limits.
Disconnect AC, PV, and battery power before performing maintenance.
Keep the ventilation openings unobstructed to prevent overheating.
